Highlight:
DWT Hot Air Circulating Drying Oven
, Continuous Drying Equipment DWT
, Food Stuff Hot Air Circulating Drying Oven
Type: |
DWT Belt Dryer |
Application: |
Chemical , Food , Medicine |
Condition: |
New |
Place Of Origin: |
China |
Brand Name: |
Senmao |
Voltage: |
Customize |
Power: |
Variable |
Dimension(L*W*H): |
Variable |
Key Selling Points: |
High Productivity |
Warranty: |
1years |
Weight(kG): |
Variable |
Applicable Industries: |
Chinese Herbal Pieces , Dehydrated Vegetables |
Machinery Test Report: |
Provided |
Video Outging Inspection: |
Provided |
Warranty To Core Components: |
1Year |
Mateial: |
SUS304,SUS316L,SS304,SS216L |
Function: |
Drying And Dehydrate |
Delivery: |
45-90days |
Guarantee Period: |
1year |
Package: |
Wooden Case |
Products Principle
The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer. The dryer is composed of several sections. For each section the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to client requirements.
Products Features
Most hot air is circulated in the cabinet, heat efficiency is high and save energy.
② Use forced ventilation and cross flow type drying principle, there are air distribution plates in the cabinet and material is dried uniformly.
③ Low noise, stable operating, self-control temperature and convenience to install and maintain.
④ Wide scope of application, it is suitable for all kinds material, and is the general type drying equipment
⑤ Common control(Button control)or PLC and touch screen control are on request
⑥ Temperature controllable ;
⑦ Store memory of work-program mode and technological parameter and printing function (According to client’s requirements)
Products Advantage
1.High efficiency,low consumption and easy operation
2.No pollution,have heat insulating layer;fast heating,convenient to start and stop
3.The speed of mesh belt dryer could be controlled
4.The temperature of the mesh belt dryer could be adjustable according to the buyer demands.
Products parameters
| Type |
DW-1.2-8 |
DW-1.2-10 |
DW-1.6-8 |
DW-1.6-10 |
DW-2-8 |
DW-2-10 |
| Unit number |
4 |
6 |
4 |
6 |
4 |
6 |
| Belt Width (m) |
1.2 |
1.2 |
1.6 |
1.6 |
2 |
2 |
| Drying section Length (m) |
8 |
10 |
8 |
10 |
8 |
10 |
| Thickness of fed material (mm) |
10-80 |
| Temperature ℃ |
60-130 |
| Steam Pressure (Mpa) |
0.2-0.8 |
| steam Consumption (Kgsteam/KgH2O) |
2.2-2.5 |
| Drying strength (KgH2O/h) |
6-20 kg/m2.h |
| Total power of blower (Kw) |
3.3 |
4.4 |
6.6 |
8.8 |
12 |
16 |
| total power of plant KW |
4.05 |
5.15 |
7.35 |
9.55 |
13.1 |
17.1 |
Specialized machine for vegetable
| |
unit
|
three units series specialized machine for vegetable |
five layers specialized machine for vegetable(Frame type) |
| model |
|
DWP-2-10-3 |
DWF-2-10-3 |
DW5-3-12 |
| effective belt width |
m |
2 |
2 |
3 |
| effective belt length |
m/unit |
10 |
10 |
12 |
| tandemquantity |
|
3 |
3 |
|
| Layer no. |
|
|
|
5 |
| vegetable capacity |
Kg/h |
600 |
720 |
2000 |
| Evaporation strength |
Kg/h |
400~510 |
480~640 |
1440~1800 |
| consumption of steam |
Kgsteam/KgH2O |
2.2~2.5 |
2.2~2.5 |
2.2~2.4 |
| heat radiation area |
M2 |
900 |
1440 |
2600 |
| total power of the plant |
KW |
70 |
52 |
150 |
| overall size |
m |
33.2×2.58×2.8 |
33.2×2.27×2.85 |
15.3×4.3×8.5 |
| heat source type |
|
steam, thermal conduction oil, hot air furnace, electric |
Specialized machine for feedstuff
| Specialized machine for feedstuff (frame type) |
| Type |
|
DWZ-3×12 |
| Effective belt width |
m |
3 |
| Effective belt length |
m/unit |
12 |
| Operation Temperature |
℃ |
80-130 |
| Steam Pressure |
Mpa |
0.4-0.8 |
| Drying time |
min |
35-50 |
| Thickness of fed material |
cm |
5-8 |
| Steam consumption |
kg/h |
6-20 |
| Drying strength |
Kgsteam/kgH2O |
2-2.4 |
| Total power of plant |
kw |
76 |
| Overall sizes |
m |
15.1×4.3×3.4 |
Application
De-watering vegetable, particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber, medicine product, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device.

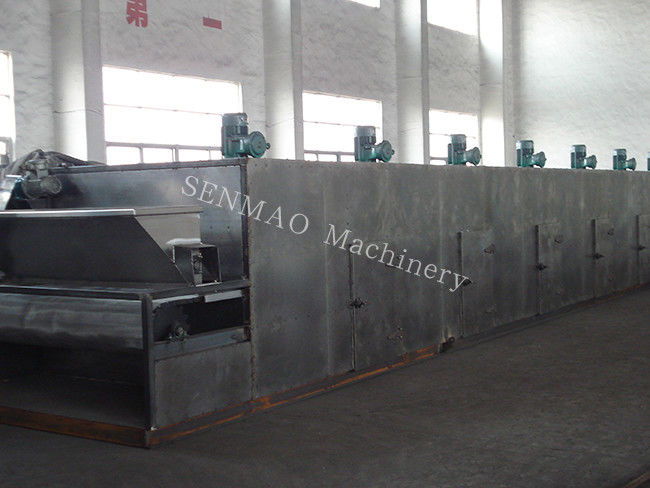

Details Image
