Vertical Boiling Fluid Bed Dryer Granulator Instant Granule Granulatir

Vertical Boiling Drier For Food Industry Deep Sea Fish Oil,Boiling Granulation Dryer , Instant Granule Granulatir

  Descriptions

    Fluidized bed drying can be used in the entire powder processing industry. In the pharmaceutical industry, this innovative method has replaced the time-consuming tray drying long ago: The drying process with fluidized bed drying reduces the drying time in the drying oven by approximately twenty times. In addition, fluidized bed drying provides controlled and uniform drying conditions compared to the uneven drying in trays.

  Products Principle

      The fresh air is filtered by the two or three filters and then enters the heating system for heating. After heated, the hot air enters into the drying chamber and blows up the material in the bowl of the FBD and lets the material into fluidization conditions. During this period, the material is dried. When customers use the machine, they can set the procedure and parameters according to the process requirements, and then start the machine.

  Products Features

      ---The structure of fluidization bed is of round so as to avoid dead corner. Inside the hopper there is a stirring device in order to avoid agglomeration of raw material and forming canal of flow. The granule is discharged through the method of turning over. It is very convenient and full. The discharged system can be designed as request.

      ---It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient for cleaning. It is an ideal equipment that is in conformity with the requirements of GMP.

      ---For the process variants spray granulation, spray agglomeration or spray coating, it should be noted that not only the moisture needs to evaporate until it has reached a defined residual value, but also that drying takes place during the entire spray process. Too high inlet air temperatures can lead to insufficient liquid bridges, instable granulate structures or inhomogeneous looking films.

      ---Fluid bed to achieve fast heat transmission of medium.


  Products parameters

Notes:Temperature:Adjustable from ambient to 120℃;

           Collection rate:> 99%

           Time of operation:15~30min(depends on material)

           Content of final product: ~ 0.2%

           Noise:≤75dB

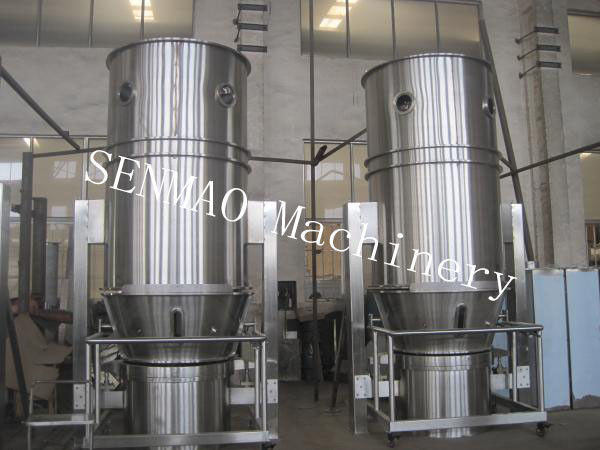

  Details Image
