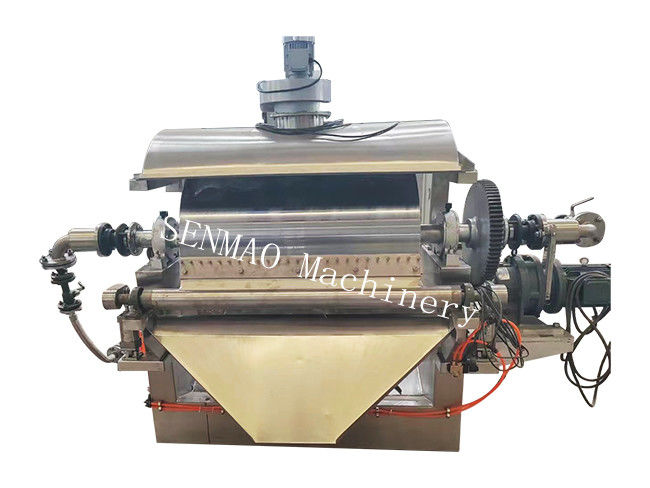

SUS316L Rotary Drum Scraper Dryer For Biopharmaceutical Waste

Yeast Scraper Dryer Calcium Carbonate Drum Scraper Dryer Clay Mud Scraper Dryer

  products Descriptions

     drum dryer is a kind of rotating continuous drying equipment with the style if internal heating conducting. certain thickness of materials film attach to the drum from material liquid vessel under the drum.heat is transferred to the internal wall if the cylinder through pipes and the to the external wall and to materials film,to evaporate the moisture in materials film so as to dry materials.dried products are then scraped off by the blade fitted on the surface of the cylinder,fall down to the spiral conveyor under the blade.and are conveyed, collected and packed.

  Features
      ---high heat efficiency. Because the heat transfer mechanism of rolling scraper dryer belongs to heat conduction, the heat transfer direction is consistent throughout the operation cycle, except for cover heat dissipation and heat radiation loss, the rest of the heat is all used for the evaporation of simple material film wet division, the thermal efficiency can reach 70%-80%.

      ---operation flexibility. Wide applicability. Many drying factors of drum scraper dryer can be adjusted. For example, the concentration of the feed, the thickness of the coating material film, the temperature of the heating medium, the rotation speed of the drum, etc., can change the drying efficiency of the roller scraper dryer, and many factors are not related to each other. This brings great convenience to the drying operation of the roller scraper, so that it can adapt to the drying of a variety of materials and different output requirements.

      ---Short drying time. Drying cycle of materials - generally only 10-300 seconds, suitable for heat sensitive materials. If the roller dryer is set in a vacuum, it can be operated under reduced pressure.

      ---the drying rate is large. Since the material film smeared on the cylinder wall is very thin, generally 0.3-1.5mm, and the heat and mass transfer directions are consistent, the evaporation intensity of the material film surface can be maintained at 20-70kgH₂O/m²h.

  products parameters

  products advantage

      ---Fit for drying organic matter with high viscosity

      ---From liquid / paste to solid in one step

      ---Energy saving & less occupied space

      ---All closed operation, friendly operation environment

  Details Image
