Veterinary Rotary Granulator Machine Drug Powder Dry Granulator
Veterinary Rotary Granulator Machine Drug Powder Dry Granulator
Veterinary Rotary Granulator Machine Drug Powder Dry Granulator

Veterinary Rotary Granulator Machine Drug Powder Dry Granulator

Product Details

Place of Origin: china

Brand Name: SENMAO

Certification: CE, ISO 9001: 2008, ISO 10004

Model Number: LGS

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: 14,000 USD to 36,000 USD

Packaging Details: Wooden Case + Plastic Film

Delivery Time: 7-15Working Days

Payment Terms: L/C , D/A , D/P , T/T , Western Union , MoneyGram

Supply Ability: 30Sets/Months

Get Best Price

Product Details

Product Description
Highlight:

Veterinary Rotary Granulator Machine

,

Rotary Granulator Machine Drug

,

Dry Powder Granulator Veterinary

Type:
Pharmaceutical Machinery
Application:
Pharmaceutical
Condition:
New
Place Of Origin:
China
Brand Name:
Senmao
Voltage:
Customize
Power(kw):
4-18
Dimension(L*W*H):
Variable
Key Selling Points:
Power To Granule In One Step,no Need Of Any Binder
Warranty:
1years
Weight(Ton):
Variable
Machinery Test Report:
Provided
Video Outging Inspection:
Provided
Warranty To Core Components:
1Year
Mateial:
SUS304,SUS316L
Delivery:
45-90days
Guarantee Period:
1year
Package:
Wooden Case
Type:
Pharmaceutical Machinery
Application:
Pharmaceutical
Condition:
New
Place Of Origin:
China
Brand Name:
Senmao
Voltage:
Customize
Power(kw):
4-18
Dimension(L*W*H):
Variable
Key Selling Points:
Power To Granule In One Step,no Need Of Any Binder
Warranty:
1years
Weight(Ton):
Variable
Machinery Test Report:
Provided
Video Outging Inspection:
Provided
Warranty To Core Components:
1Year
Mateial:
SUS304,SUS316L
Delivery:
45-90days
Guarantee Period:
1year
Package:
Wooden Case
Veterinary Rotary Granulator Machine Drug Powder Dry Granulator

  Description

      Dry granulation is the process which could granulate the powder in one step without wet blending or drying process.Categorized by it's feeding method,there are two types of dry granulator-horizontal Feeding and Vertical Feeding.type dry granulator has more stable capability,higher granulation rate,it is more advancde in technology and it is our fist praduct.



  Features

  • 1,power to granule in one step,no need of any binder.
  • 2,Granules are formed only by pressure,so there’s no influence of it’s feature,no devaluation of it's effective ingredients.The roller compactors are vertical applide(horizontal feeding),it reduces gravity influences during feeding.By controllable feeding speed,product flakes are more uniform.
  • 3.The gap between roller compactors are adjustable,it provides more flexible operation lasticity,and helps to achieve better granulation effect.
  • 4.less operation cost and occupied space.
  • 5.Higher granulation rante and production rate.
  • 6.Equipped with hydraulic pressure system ,product density and strength are able to adjustde.
  • 7.Simpler structure for more convenient cleaning.
  • 8.Vacuum system for helping higher granulation rate and form more dense product.
  • 9.Overlapping curved,straight lined or smooth roller compactor surface are available for choices
  • 10.Data recorder to save all operation parameters.
  • 11.PLC+Touch Screen control,easy to operate.


  products parameters

model LGS-1 LGS-2 LGS-3 LGS-4 LGS-5
diameter of roller(mm) Φ120X35 Φ150X50 Φ180X60 Φ200X75 Φ240X120
Production capacity(kg/h) 1~30 30~100 50~150 80~250 100~500
Particle size of product(mm) 0.2~2 0.2~2 0.2~2 0.2~2 0.2~2
molding pressure(MPa) 0~25 0~25 0~25 0~25 0~25
power(kw) 4 7 10 12 18
overall size(L*W*H) 1110X1080X1700 1160x1180x1980 1200x1100x1900 1260x1660x1990 1600x1650x1920
weight(T) 1.2 1.5 1.8 2 2.8



  Details Image

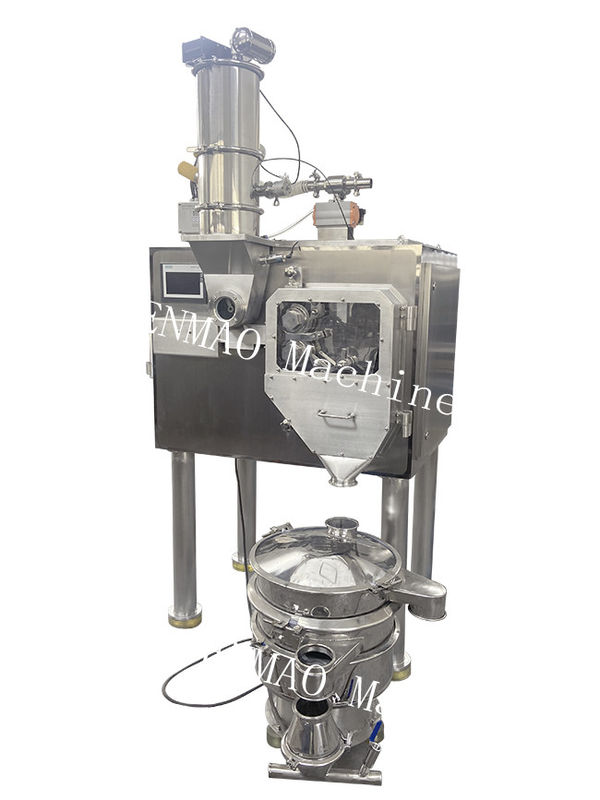

Veterinary Rotary Granulator Machine Drug Powder Dry Granulator 0
