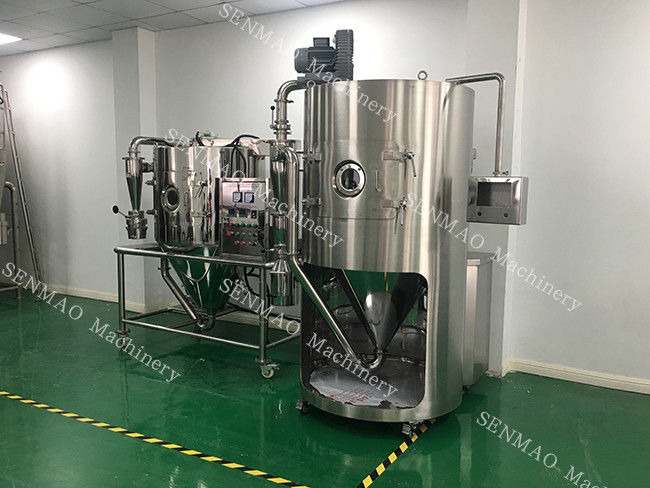

Extract Powder Spray Dryer Ox Gall Powder Tea Polyphenol Centrifugal Spray Dryer

Extract powder spray dryer Ox gall powder tea polyphenol centrifugal spray dryer

  Working principle

• The air passes through the filter and heater and enters the hot air distributor at the top of the drying chamber. The hot air enters the drying chamber evenly in a spiral shape. The material liquid passes through the filter and is pumped to the centrifugal spray head at the top of the drying chamber. It is sprayed into very small mist droplets, which contact the hot air with a large surface area. The water evaporates quickly, and in a very short time It is dried into granular products, and the wet exhaust gas is captured at the bottom of the tower and cyclone separator and discharged to the outside by a fan.

  Features and applications

• 1. The drying speed is fast. The surface area of ​​the material liquid is greatly increased after centrifugal spraying. In the high-temperature air flow, 95-98% of the water can be evaporated in an instant, and the drying time only takes a few seconds.
• 2. Suitable for heat-sensitive materials. Since the liquid droplets and hot air flow in parallel directions, although the temperature of the hot air is higher, the material will not be overheated when the water evaporates.
• 3. Wide range of use. A large number of materials with widely different physical properties are produced using this method. Such as polymers and resins; dyes and pigments; ceramics and glasses; rust removers and insecticides; carbohydrates; dairy products; blood and fish products; fertilizers; organic and inorganic compounds; etc. wait.
• 4. The product has good dispersion, fluidity and solubility. This is because drying is completed in an instant and the product can maintain a uniform and fine granular shape.
• 5. The production process is simplified and operation control is convenient. Solutions with a moisture content of 40-60% (up to 90% for special materials) can be dried into powdery products at one time. After drying, there is no need for crushing and screening, which reduces the production process and improves product purity. The particle size, bulk density and moisture content of the product can be adjusted within a certain range by changing the operating conditions, making control and management very convenient.

  Main technical parameters

◆Large color touch screen operation, fully automatic control and manual control combined, Chinese and English panel, parameter LCD display.
◆Real-time PID constant temperature control technology, accurate temperature control, heating temperature control accuracy ±1℃.
◆The spray, drying and collection devices are made of double-mirror high-quality 304 stainless steel, and the spray drying chamber is equipped with an observation port.
◆Centrifugal spray atomization structure, the particle size of the spray powder is normally distributed, and the fluidity is good.
◆The feed amount can be adjusted by the feed peristaltic pump.
◆Unique protection function, the fan does not start and the heater cannot start.
◆Equipped with air inlet filtration to ensure sample purity.
◆The dried product has uniform particle size, with more than 95% of the dry powder having the same particle size.
1. Inlet temperature ≤30-300℃
2. Outlet temperature＜30～150℃
3. The maximum evaporation capacity of water is 200-10L/h
4. Centrifugal spray head transmission form: electric
5. Speed ​​40000rpm
6. Spray disc diameter 80mm
7. Heat source: electricity
8. The maximum power of electric heating is 18kw, total power: 23kw
9. Overall dimensions length × width × height (mm): 2100 × 1100 × 2450
10. Dry powder recovery ≥98%


  products parameters


  Details Image



主要流程图  Drying flow chat
