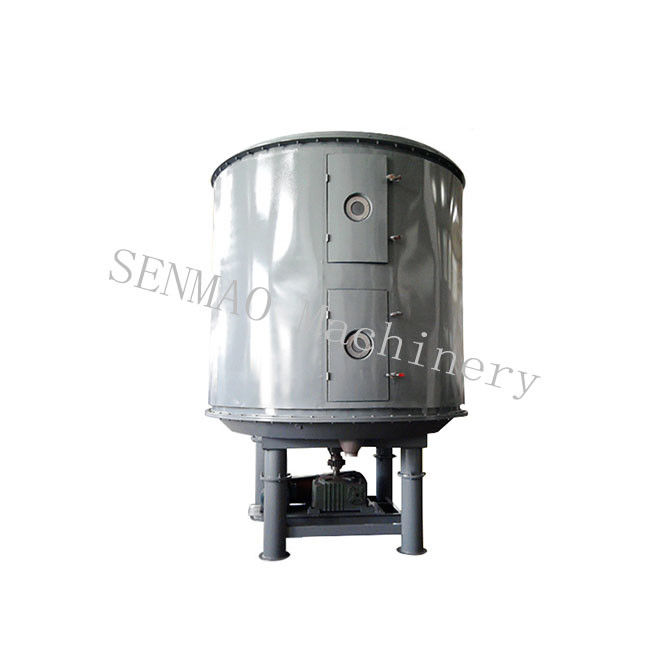

Chemical Aminopropionic Acid Disc Connection Continued Dryer

Chemical Aminopropionic Acid Disc Connection Continued Dryer

  products descriptions

      The tray continuous dryer is a high-efficiency conduction type continuous drying equipment. Its unique structure and working principle determine that it has the characteristics of high thermal efficiency, low energy consumption, small footprint, simple configuration, convenient operation and control, and good operating environment. It is widely used in chemical, pharmaceutical, pesticide, food, feed, agricultural Drying operations in industries such as by-product processing. It is well received in the practice of various industries. Now we manufacture three types of atmospheric pressure, airtight and vacuum, 1200, 1500, 2200, 3000, A (carbon steel), B (stainless steel evenly distributed in the contact material), C (on the basis of B, add a steam pipe The road, the main shaft and the bracket are made of stainless steel, and the cylinder and the top of the cover are lined with stainless steel). Three kinds of materials, drying area of 4-180m2, a total of hundreds of models of series products, and can provide a variety of auxiliary equipment to meet the needs of users for drying various materials.

  products Principle

      Wet raw materials are fed continuously on the first hot plate on the top of dryer. Raw materials then will be turned and agitated under the function of rotating rake. When on the small hot plate, raw material will moving to plate outer edge and drop down to the outer edge of the big hot plate underneath, then will moving inner-ward and drop down from its central hole to the small hot plate on the lower layer. Both small and large drying plates are arranged alternately so that raw material can go through the whole dryer continuously. Dried product will drop from the lowest layer of hot plate to the bottom layer of the chamber body, and will be moved by rakes to discharging port. The moisture will be removed from the moisture discharging port on top of chamber, or sucked out by vacuum pump (only for vacuum type hot plate dryer).

The dryer support using hot water, steam or thermal oil as heating resource. It also support using chilling water for cooling.

  products Features

      1. Under the state of vacuum, the dryer can keep raw material feeding and discharging in continuous or half-continuous production..

      2. Closed operation, it is particularly suitable for drying raw material which is toxic or easy to oxidize.

      3. It is very convenient to recover organic solvent from exhausted gas.

      4. Low energy consumption, high efficiency, safe and convenient operation, product won’t be polluted.

  products parameters

  Details Image
