Industrial Square Conical Mixer Food Starch Mixer For Medicine Food Feed Fertilizer

Name: Industrial Square Conical Mixer Food Starch Mixer For Medicine Food Feed Fertilizer
Brand: SENMAO
SKU: FZH
Price: 3 USD
Availability: InStock
Rating: 4.7 (109 reviews)

Product Details

Place of Origin: china

Brand Name: SENMAO

Certification: CE, ISO 9001: 2008, ISO 10004

Model Number: FZH

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: 3,500 USD to 50,000 USD

Packaging Details: Wooden Case + Plastic Film

Delivery Time: 7-15Working Days

Payment Terms: L/C , D/A , D/P , T/T, Western Union , MoneyGram

Supply Ability: 30Sets/Months

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Medicine Square Conical Mixer, Fertilizer Square Conical Mixer, Food Starch Industrial Mixing Machine


Type:	Square Cone Mixer	Application:	Medicine , Food , Feed , Fertilizer , Etc .
Condition:	New	Place Of Origin:	China
Brand Name:	Senmao	Voltage:	Customize
Dimension(LWH):	Variable	Key Selling Points:	The Gap Between Blades Is Small And There Is No Dead Corner.
Warranty:	1years	Weight(Ton):	Variable
Machinery Test Report:	Provided	Video Outging Inspection:	Provided
Warranty To Core Components:	1Year	Mateial:	SUS304,SUS316L
Delivery:	45-90days	Guarantee Period:	1year
Package:	Wooden Case

Type:	Square Cone Mixer
Application:	Medicine , Food , Feed , Fertilizer , Etc .
Condition:	New
Place Of Origin:	China
Brand Name:	Senmao
Voltage:	Customize
Dimension(LWH):	Variable
Key Selling Points:	The Gap Between Blades Is Small And There Is No Dead Corner.
Warranty:	1years
Weight(Ton):	Variable
Machinery Test Report:	Provided
Video Outging Inspection:	Provided
Warranty To Core Components:	1Year
Mateial:	SUS304,SUS316L
Delivery:	45-90days
Guarantee Period:	1year
Package:	Wooden Case

Industrial Square Conical Mixer Food Starch Mixer For Medicine Food Feed Fertilizer

Principle

Materials are charged into a closed square-cone mixing barrel, the symmetrical axes of hopper and the axes of rotating shaft form an included angle, materials with different constituents are strenuously rolling over in the closed hopper and producing high shear to achieve the best effect of mixing.

Features

1.The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99% , and the volume charge coefficient reaches 0.8.
2.Low rotating height, smooth running, reliable performance, easy operation.
3.Highly polished inner and outer surfaces of the barrel, no dead corner, easy to discharge materials, easy to clear, no cross contamination. Conforming to the requirement of GMP.
4.The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99%, and the volume charge coefficient reaches 0.8.
5.Low rotating height, smooth running, reliable performance, easy operation.
6.Highly polished inner and outer surfaces of the barrel, no dead corner, easy to discharge materials, easy to clear, no cross contamination. Conforming to the requirement of GMP.
7.The control system has more choices, such as push button, HMI+PLC and so on.
8.The feeding system for this mixer can be by manual or pneumatic conveyor or vacuum feeder or screw feeder and so on.

products parameters

Spec	Total volume (L)	Charge volume (L)	Charge weight (kg)	Rotation speed of main shaft (r/min)	Motor power (kW)	Inlet diameter (mm)	Outlet diameter (mm)	Overall dimenson (mm)			Weight(kg)
Spec	Total volume (L)	Charge volume (L)	Charge weight (kg)	Rotation speed of main shaft (r/min)	Motor power (kW)	Inlet diameter (mm)	Outlet diameter (mm)	L	W	H	Weight(kg)
300	300	210	150	15	1.5	380	200	1850	1280	1970	500
500	500	350	250	15	2.2	380	200	2200	1550	2260	700
1000	1000	700	500	12	4	400	200	2800	2000	2850	1000
1500	1500	1050	750	12	5.5	400	200	2915	2300	2950	1500
2000	2000	1400	1000	12	7.5	400	200	3160	2500	3200	2000
3000	3000	2100	1500	9	11	400	200	3800	3200	3850	3000
4000	4000	2800	1960	9	15	400	200	3770	3190	4030	4000
5000	5000	3500	2450	8	15	450	250	4360	5310	4415	5000
6000	6000	4200	2950	8	15	450	250	4520	3570	4850	6000
8000	8000	5600	3950	7	18.5	480	250	4890	3790	4880	7000
10000	10000	7000	4900	7	22	480	250	5230	4050	5230	7800

Details Image

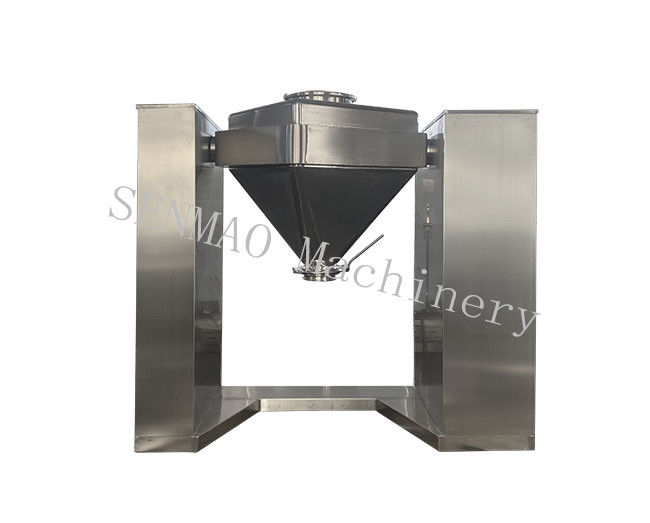

Industrial Square Conical Mixer Food Starch Mixer For Medicine Food Feed Fertilizer 0
