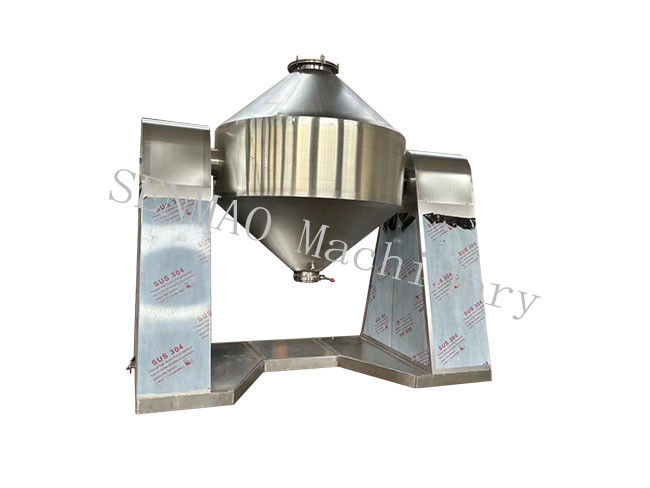

Industrial Iron Oxide Double Cone Rotary Vacuum Dryer Chemical Raw Material Dryer

  Products Descriptions
       SZG series double cone vacuum dryer is an indirect heating batch type drying processor. The bi-conical drying chamber has heating jacket which can be filled with hot water, steam or thermal oil. During the operation, vacuum condition is created by the vacuum pump and wet material flows alongside the heated inner surface with the rotation of drying chamber. Heat transfer happens between wet material and heated surface of drying chamber. The evaporated moisture is sucked out by vacuum pump. If the evaporated moisture needs to be recovered, condenser and buffer tank can be equipped.
      SZG series double cone vacuum dryer has been widely used in food, chemical and pharmaceutical industry for drying:
        1) Powder, small granule or fiber products with good flowability.

        2) Easy-oxidized, toxic, explosive or heat sensitive humid masses after centrifugation or filteration.

        3) Moisture is organic solution and need to be recovered.


  Products Features
      ——1. Drying or extracting water or solvents from humid powder and small granule products
      ——2. Drying Chamber volume:100-5000L
      ——3. GMP design
      ——4. Heat supply can be steam,hot water and hot oil.

  Products Features

      ●Introduce heat energy (such as hot water, low pressure, steam or heat transfer oil) into the closed interlayer, and the heat is transferred to the material to be dried through the inner shell.

      ● Driven by power, the tank body rotates slowly, and the materials in the tank are continuously mixed, so as to achieve the purpose of strengthening drying.

      ●The material is in a vacuum state, and the vapor pressure drops to make the water (solvent) on the surface of the material reach a saturated state and evaporate, and is discharged and recovered by a vacuum pump in time. The water (solvent) inside the material continuously penetrates, evaporates and discharges to the surface. The three processes are carried out continuously, and the material achieves the purpose of drying in a very short time.


  Products Parameters

The revelution of motor can be adjustable(3-13)on request


  Details Image

 结构示意图  Sketch of structure


推荐的工艺安置示范:溶剂回收工艺安置
example of recommended installation of solvent recover.
