Mortar Spice Horizontal Ribbon Mixer Customized

Name: Mortar Spice Horizontal Ribbon Mixer Customized
Brand: Changzhou Senmao Machinery Equipment Co. LTD
SKU: WLDH
Price: 26.00 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: Horizintal Ribbon Mixer

Certification: CE, ISO 9001: 2008, ISO 10004

Model Number: WLDH

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: 2,900 USD to 50,000 USD

Packaging Details: Wooden Case + Plastic Film

Delivery Time: 7-15Working Days

Payment Terms: L/C , D/A , D/P , T/T, Western Union , MoneyGram

Supply Ability: 30Sets/Months

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Mortar Spice Horizontal Ribbon Mixer, SUS304 Horizontal Ribbon Mixer, Horizontal Industrial Mixing Machine


Type:	Horizintal Ribbon Mixer	Application:	Medicine , Food , Etc .
Condition:	New	Place Of Origin:	China
Brand Name:	Senmao	Voltage:	Customize
Power(kw):	2-30	Dimension(LWH):	Variable
Key Selling Points:	Big Coefficient Of Loading,small Occupied Area	Warranty:	1years
Weight(Ton):	Variable	Machinery Test Report:	Provided
Video Outging Inspection:	Provided	Warranty To Core Components:	1Year
Mateial:	SUS304,SUS316L	Delivery:	45-90days
Guarantee Period:	1year	Package:	Wooden Case

Type:	Horizintal Ribbon Mixer
Application:	Medicine , Food , Etc .
Condition:	New
Place Of Origin:	China
Brand Name:	Senmao
Voltage:	Customize
Power(kw):	2-30
Dimension(LWH):	Variable
Key Selling Points:	Big Coefficient Of Loading,small Occupied Area
Warranty:	1years
Weight(Ton):	Variable
Machinery Test Report:	Provided
Video Outging Inspection:	Provided
Warranty To Core Components:	1Year
Mateial:	SUS304,SUS316L
Delivery:	45-90days
Guarantee Period:	1year
Package:	Wooden Case

Mortar Spice Horizontal Ribbon Mixer Customized

Products Descriptions

The machine is composed of the core blade of the material container and the transmission device; the layered structure is composed of the outer layer, the driving layer will go to the center, the push layer will flow from the middle direction, and the flow will react to the flow and mixing.

Features
1．Large coefficient of loading and small occupying area.

2．It is difficult to clean when it is used to mixing viscous or adhesive material.

3．The feeding system for the mixer is very flexible, and it can be designed based on the customer site.

4．Control system has more choices, such as push button, HMI+PLC and so on

5．For the feeding system, it can choose vacuum feeding system, screw feeding system or other kinds of feeding system.

Products Parameters

Model	Volume (L)	loading coefficient	Motor power (KW)	Speed (rpm)	Weight(kg)
WLDH-0.1	30~50	0.4 ~ 0.6	1.5~4	42	300
WLDH-0.3	100~150	0.4 ~ 0.6	3~5.5	42	500
WLDH-0.5	500	0.4 ~ 0.6	4 ~ 7.5	42	900
WLDH- 1	1000	0.4 ~ 0.6	5.5 ~ 11	42	1400
WLDH- 1.5	1500	0.4 ~ 0.6	11-18.5	42	1900
WLDH- 2	2000	0.4 ~ 0.6	11 ~ 15	42	2500
WLDH- 3	3000	0.4 ~ 0.6	15 ~ 18.5	42	3100
WLDH- 4	4000	0.4 ~ 0.6	18 ~ 30	42	3600
WLDH- 5	5000	0.4 ~ 0.6	22 ~ 37	42	4500
WLDH- 6	6000	0.4 ~ 0.6	30 ~ 45	42	5300
WLDH- 8	8000	0.4 ~ 0.6	37 ~ 55	42	6800
WLDH- 10	10000	0.4 ~ 0.6	45 ~ 55	42	7800
WLDH- 12	12000	0.4 ~ 0.6	45 ~ 75	42	9000
WLDH- 15	15000	0.4 ~ 0.6	55 ~ 90	42	11400

Details Image

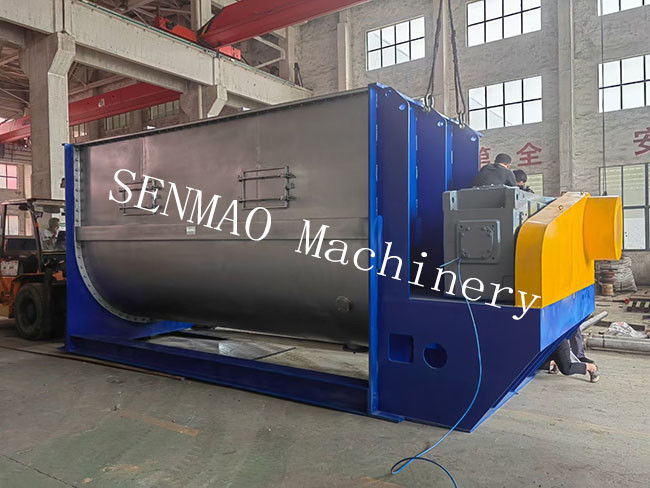

Mortar Spice Horizontal Ribbon Mixer Customized 0
