Multi Function SUS316L Auxiliary Equipment Multi Effect Falling Film Evaporator

Name: Multi Function SUS316L Auxiliary Equipment Multi Effect Falling Film Evaporator
Brand: SENMAO
SKU: -
Price: 10 USD
Availability: InStock
Rating: 5 (101 reviews)

Product Details

Place of Origin: china

Brand Name: SENMAO

Certification: CE, ISO 9001: 2008, ISO 10004

Model Number: -

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: 10,000 USD to 500,000 USD

Packaging Details: Wooden Case + Plastic Film

Delivery Time: 7-15Working Days

Payment Terms: L/C , D/A , D/P , T/T , Western Union , MoneyGram

Supply Ability: 30Sets/Months

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Multi Effect Falling Film Evaporator, Multi Function Falling Film Evaporator, SUS316L Auxiliary Equipment


Type:	Falling Film Evaporator	Application:	Pharmaceutical, Chemical, Waste Water Treatment Industry
Condition:	New	Place Of Origin:	China
Brand Name:	Senmao	Dimension(LWH):	Variable
Key Selling Points:	Easy To Cleaning	Warranty:	1years
Warranty To Core Components:	1Year	Heating Method:	Steam
Mateial:	SUS304,SUS316L,SS304,SS216L	Delivery:	45-90days
Guarantee Period:	1year	Package:	Wooden Case

Type:	Falling Film Evaporator
Application:	Pharmaceutical, Chemical, Waste Water Treatment Industry
Condition:	New
Place Of Origin:	China
Brand Name:	Senmao
Dimension(LWH):	Variable
Key Selling Points:	Easy To Cleaning
Warranty:	1years
Warranty To Core Components:	1Year
Heating Method:	Steam
Mateial:	SUS304,SUS316L,SS304,SS216L
Delivery:	45-90days
Guarantee Period:	1year
Package:	Wooden Case

Multi Function SUS316L Auxiliary Equipment Multi Effect Falling Film Evaporator

Falling Film Evaporator , Effect Multi-Function Evaporator Multiple Effect Evaporator

Products Description

Falling film evaporator divided by the single effect, double effect, three eight-effect evaporator for milk, glucose, starch, xylose, pharmaceutical, chemical, biological engineering, environmental engineering, waste recycling and other industries concentrated by evaporation , especially for heat-sensitive or difficult to scale easily evaporate strong materials, can be combined with a plate, tube, plate and pipe can be designed MVR, TVR saving technology devices.
By the effect of the heater system components, each efficiency separators, condensers, hot pumps, vacuum systems and drain-age systems, each liquid feed efficiency, pump, operating platform, electrical instrumentation and control cabinet, valves, piping and other system components.

Main Feature

a.A full set of system design is reasonable and beautiful, stable operation, high efficiency, low consumption of steam, pump flow is relatively small, small installed power, low power consumption.
b.Concentration ratio, falling film evaporation, the viscosity of the liquid material flow easily evaporation, concentration time is short.
c.Low evaporation temperature, feed liquid mild heat for concentrating heat-sensitive materials.

Equipment characteristics:

1. Full closed process, fast and low temperature evaporation;
2. Inside pipes are mirror polishing seamless sanitary pipes, so material is not easy to paste on the pipe all, it's easy for cleaning;
3. Low steam consumption: 1kg steam can evaporate 3.5kg water;
4. Low evaporation temperature:part of secondary steam can be inhaled into single-effect heater through spray type hot pressure pump, this would make full use of the heat and the evaporation temperature is low.
5. Large concentration ratio: adopt falling film evaporation, which make the material liquid with larger viscosity be easy to flow and evaporate, hard to scale, short concentration time, the concentration ratio can reach to 1:5.
6. This equipment can realize automatic production, intellectual system management, which is in conformity with GMP standard.
7. Can be designed into different technological process according to the different characteristics of the materials , also can according to different users' requirements equip with automatic control system.

Application
It's applicable for dairy products, pharmacy, glucose, starch,chemical industry, xylose, citric acid, ammonium sulfate, biological engineering, environmental engineering and waste liquid recovery and treatment. etc.

Equipment structure:
It consists of (first-effect, second-effect, third-effect)separators and evaporators and pre-heater, condenser and vacuum pump, feeding pump,circulation pump, discharge pump, condensed water pump and system pipe fittings, etc. Equipped with CIP spraying cleaning ball, vacuum gauge, thermometer,pressure gauge,and so on.

products parameters

Falling film evaporator parameters
Model	JME1-XX	JME2-XX	JME3-XX	JME4-XX	JME5-XX
Water evaporation(th)	0.5-5	1.0-10	1-20	5-20	5-180
Feed concentration (%)	Depending on different materials
Concentration for product (%)	Depending on different materials
Steam pressure M Pa	0.05-0.1	0.6-0.8
Steam consumption (kg) / wawter evaporation (kg)	1.13	0.48-0.57	0.33-0.45	0.3-0.35	0.23
Evaporation temperature (℃)	48-110
Circulating cooling water consumption T/T Evaporation (designed by :water supplied at 30 ℃ and returned at 40 ℃)	56	18-28	14-18	10-12

Optional Choice

This kind of complete equipment is manufactured based on customized design. Not all functional features provide all designs. The actual configuration should be made in accordance with the contract or signed agreement.
For the main electrical components, we have international brand choices such as ABB,Siemens or Schneider or others
For the material for the machine, we have choices on AISISUS304, AISISUS304L, AISISUS316,AISISUS316L,carbon steel and so on.
For the control system, we have choices on push button, PLC+HMI and so on. We can design the control system as needed.
We can design the explosion-proof system for our spray dryer based on customer’s request.
For the fitting system for the spray dryer, we can supply it, such as feeding system, pneumatic conveying system and so on.
For the heating system for the plant, it is very flexible, and we can configure it based on the customer’s site conditions, such as steam,electricity, gas furnace and so on, all of them we can design it to match our spray dryer.
If without heating system, it can as a cooler to make particles with cooling air.
Complete and professional R&D equipment, scientific and reasonable product testing services, extensive and in-depth production technology exchanges, research and exploration service platforms:
The leading company can provide customers with various process tests and test verification services in a series of laboratories such as YPG, LPG, PSD, BYP, PFSD, etc., and small pilot scales or even a small number of production-type test units. These equipments have verified the feasibility of the technical application of many series of leveling, determine the best production process conditions, and provide samples for market analysis.

Notices before order
◆Name and physical properties of feed: solid content (or water content), viscosity, surface tension, PH value.
◆The powder capacity after drying, allowable residual water content, particle size, allowable temperature.
◆Production, daily working hours/shift.
◆Available energy: steam pressure available, electric capacity, coal, oil, gas available.
◆Control requirements: whether the inlet and outlet temperatures need to be controlled automatically.
◆Powder collection requirements: whether to install a bag trap, and the environmental requires on exhaust gas.
◆Other special requirements.

Details Image

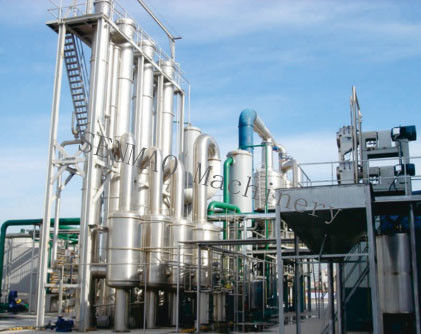

Multi Function SUS316L Auxiliary Equipment Multi Effect Falling Film Evaporator 0
