Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SUS304 Auxiliary Equipment, Alcohol Precipitation Tank SUS304, Alcohol Precipitation Tank Mechanically Enclosed


Type:	Crystallizer	Application:	Used In The Pharmaceutical, Fine Chemicals, Bio-engineering And Other Industries, The Tank May Be Provided With A Jacket, Coil Insulation (heated, Cooled, Paul Warm).
Condition:	New	Place Of Origin:	China
Brand Name:	Senmao	Dimension(LWH):	Variable
Key Selling Points:	Easy To Cleaning	Warranty:	1years
Warranty To Core Components:	1Year	Heating Method:	Steam
Mateial:	SUS304,SUS316L,SS304,SS216L	Delivery:	45-90days
Guarantee Period:	1year	Package:	Wooden Case

Type:	Crystallizer
Application:	Used In The Pharmaceutical, Fine Chemicals, Bio-engineering And Other Industries, The Tank May Be Provided With A Jacket, Coil Insulation (heated, Cooled, Paul Warm).
Condition:	New
Place Of Origin:	China
Brand Name:	Senmao
Dimension(LWH):	Variable
Key Selling Points:	Easy To Cleaning
Warranty:	1years
Warranty To Core Components:	1Year
Heating Method:	Steam
Mateial:	SUS304,SUS316L,SS304,SS216L
Delivery:	45-90days
Guarantee Period:	1year
Package:	Wooden Case

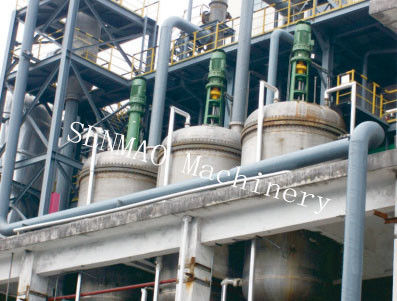

SUS304 Auxiliary Equipment Alcohol Precipitation Tank Mechanically Enclosed

Crystallizer / Alcohol Precipitation Tank

Products Description

The device applies to oral, food, health care products such as alcohol precipitation, alcohol precipitation tank is the key equipment alcohol precipitation processes.

The device is made with stainless steel, fitted with high-pressure automatic spray & clean system. The clip-sleeve can contain low-temperature cooling water. The drive part is mechanically enclosed. The explosion-proof motor can assure the production progress meeting the GMP standard on quality.

Principle

Crystallization reaction tank after the mixing of materials, sandwich domestic chilled water or chilled water rapid cooling crystallization device, the key aspects that form the structure of the size of the mezzanine area, a stirrer and a material outlet in the form of cans in vivo high-precision polishing, and cleaning the tank body no dead ends to meet the requirements of the process conditions. Used in the pharmaceutical, fine chemicals, bio-engineering and other industries, the tank may be provided with a jacket, coil insulation (heated, cooled, Paul warm). Equipment made of stainless steel, tank wall mirror polished, fully enclosed design ensures the material always in a state of pollution-free operation.

Products Parameters

Alcohol precipitation tank parameters
Parameters	JC-300	JC-500	JC-1000	JC-1500	JC-2000	JC-3000	JC-6000
Volume(L)	0.3	0.5	1.0	1.5	2.0	3.0	6.0
Heat exchange area (m2 )	1.8	3.0	4.5	6.5	7.5	8.5	13
Working temperature (℃)	Room Temp.～15℃
Jacket Pressure(Mpa)	0.25
Tank pressure (Mpa)	0.01
Heat transfer coefficient	150～200Kj/m2h℃
Stirring power(Kw)	0.75	0.75	1.5	2.2	2.2	-	-
Stirring speed(r/min)	250	250	160	125	125	125	125
Dead weight(kg)	512	1250	1480	1750	1880	2200	4000
Length(mm)	600	800	1000	1200	1300	1400	1600
Width (mm)	850	1050	1300	1550	1650	1750	2000
Height(mm)	900	900	1200	1200	1300	1400	2700
