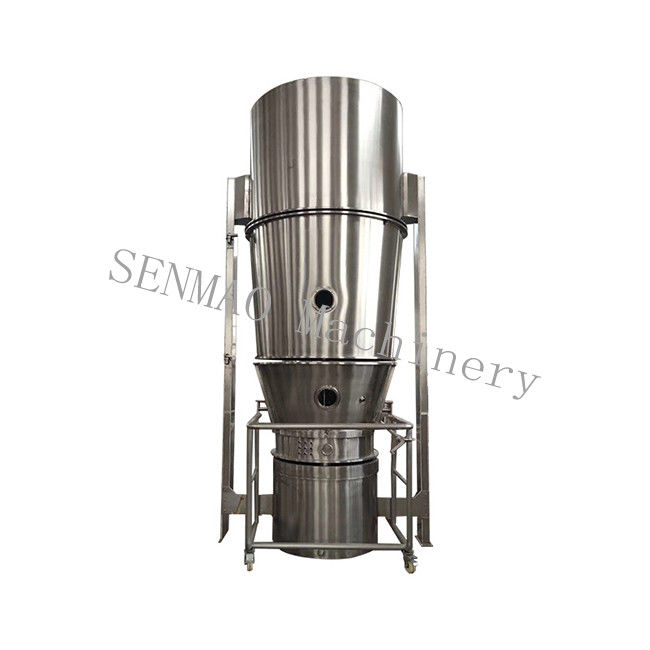

Instant Granulation Boiling Dryer
Instant Granulation Boiling Dryer
Instant Granulation Boiling Dryer

Instant Granulation Boiling Dryer

Product Details

Place of Origin: china

Brand Name: SENMAO

Certification: CE, ISO 9001: 2008, ISO 10004

Model Number: GFG

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: 17,000 USD to 720,000 USD

Packaging Details: Wooden Case + Plastic Film

Delivery Time: 7-15Working Days

Payment Terms: L/C , D/A , D/P , T/T , Western Union , MoneyGram

Supply Ability: 30Sets/Months

Get Best Price

Product Details

Product Description
Highlight:
Type:
GFG High Efficiency Fluidizing Dryer
Application:
Drying Of Wet Granular And Powdery Materials In The Fields If Medicine,food ,feed,chemical Industry,ect
Condition:
New
Place Of Origin:
China
Brand Name:
Senmao
Voltage:
Customize
Power:
Variable
Dimension(L*W*H):
Variable
Key Selling Points:
Therefore Is Simple In Operation And Convenient For Cleaning
Warranty:
1years
Weight(kG):
Variable
Machinery Test Report:
Provided
Video Outging Inspection:
Provided
Warranty To Core Components:
1Year
Mateial:
SUS304,SUS316L,SS304,SS216L
Function:
Drying And Cooling
Delivery:
45-90days
Guarantee Period:
1year
Package:
Wooden Case
Type:
GFG High Efficiency Fluidizing Dryer
Application:
Drying Of Wet Granular And Powdery Materials In The Fields If Medicine,food ,feed,chemical Industry,ect
Condition:
New
Place Of Origin:
China
Brand Name:
Senmao
Voltage:
Customize
Power:
Variable
Dimension(L*W*H):
Variable
Key Selling Points:
Therefore Is Simple In Operation And Convenient For Cleaning
Warranty:
1years
Weight(kG):
Variable
Machinery Test Report:
Provided
Video Outging Inspection:
Provided
Warranty To Core Components:
1Year
Mateial:
SUS304,SUS316L,SS304,SS216L
Function:
Drying And Cooling
Delivery:
45-90days
Guarantee Period:
1year
Package:
Wooden Case
Instant Granulation Boiling Dryer

  products Principle

      Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the work chamber, the state of fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly.



  products Features

     ---The structure of fluidized bed is round so as to avoid dead corner.
     ---Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow.
     ---The granule is discharged through the method of turning over. In this way it is very convenient and full. The discharging system can be designed as request too.
      ---It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP.
      ---The drying speed is fast and the temperature is uniform. In general the drying time is 15-45 minutes for each batch.


  products parameters

Model GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-300 GFG-500
Batch charging(kg) 60 100 120 150 200 300 500
Blower Air flow(m3/h) 2361 3488 3488 4901 6032 7800 10800
Air pressure(mm)(H2O) 494 533 533 679 787 950 950
Power(kw) 7.5 11 11 15 22 30 45
Agitating power(kw) 0.4 0.55 0.55 1.1 1.1 1.1 1.5
Agitating speed(rpm) 11
Steam consumption(kg/h) 141 170 170 240 282 366 451
Operating time(min) ~15-30 (According to the material)
Height(mm) Square 2750 2850 2850 2900 3100 3300 3650
Round 2700 2900 2900 2900 3100 3600

3850



  Details Image

Instant Granulation Boiling Dryer 0Instant Granulation Boiling Dryer 1
